Metallic materials - Equipment and range of measurement

At the Danish Technological Institute, our facilities for Metal- and Surface Technology include modern laboratories, a large and flexible test hall and a workshop with CNC machining center for fast cutting of samples. Our facilities give us a unique base for offering a solution to your problem

The equipment that is at our disposal includes:

  • Scanning Electron Microscope (SEM) with up to 250,000 x magnification and chamber size of 420 mm (Ø) x 330 mm (h)
  • Optical Emission Spectroscopy (OES) for elemental analysis of iron-, aluminum, copper-, and nickel-based alloys
  • Stereomicroscopes and Light Optical Microscopes (LOM)

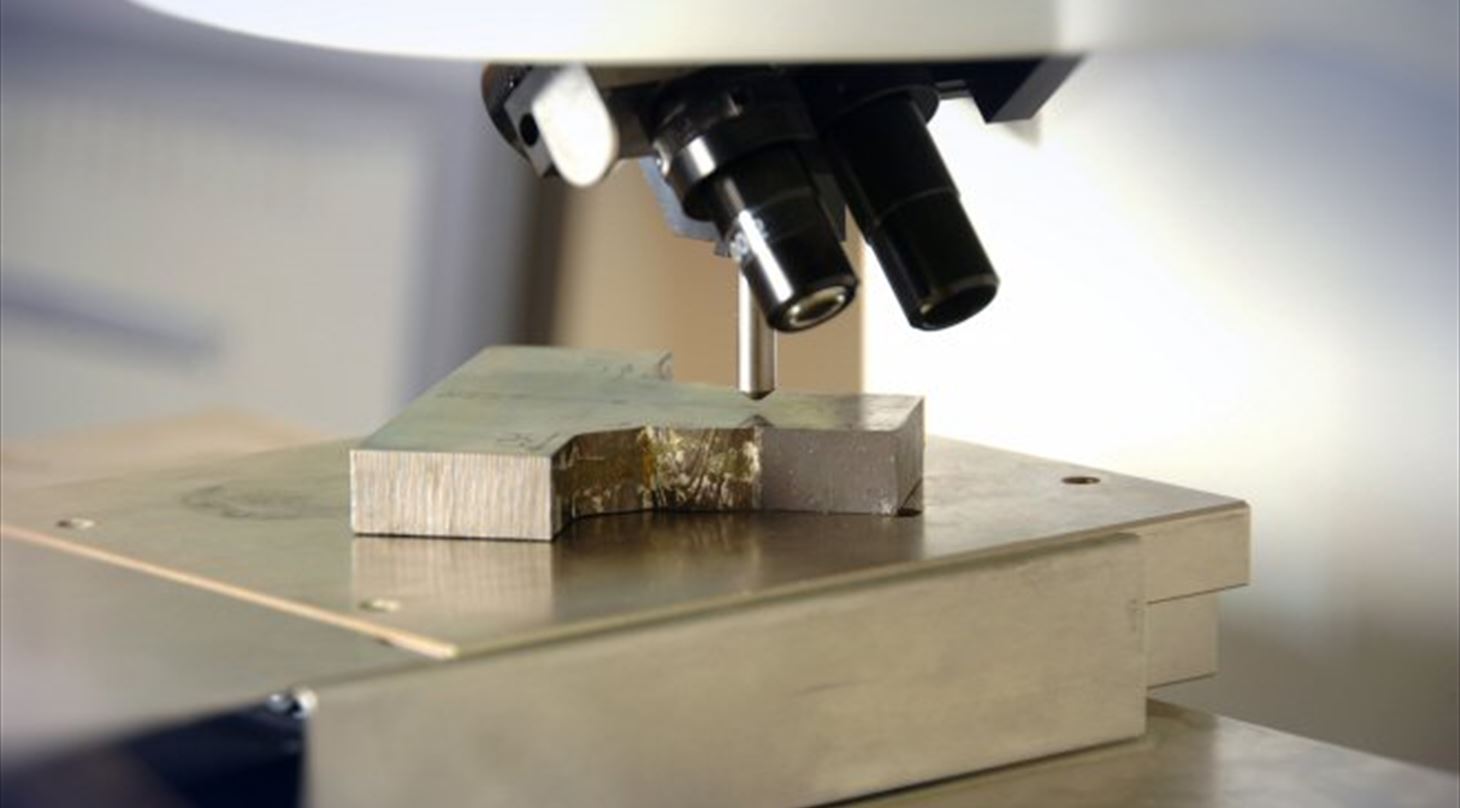

  • Vickers hardness tester, HV0.3 - HV10
  • Brinell hardness tester, 30 - 650 HBW
  • Rockwell hardness tester, 20 - 70 HCR
  • Water bath with circulation, 0 - 120 °C
  • Static tension- and compression test, tension: 1000 kN, compression: 5000 kN
  • Dynamic tension- and compression test, max. 500 kN (1000 kN at 8 Hz)
  • Bending test
  • Charpy-V tester, impact testing 300 J, temperatures down to -196 °C
  • Roughness tester, portable diamond stylus -200 μm - +160 μm
  • Salt mist test and environmental chamber
