Gas supply controlled by MFC; ring spar; gas mixing chamber.
Variable speed, temperature, pH and gas supply for optimization.
Sensors: Temperature, pH, DO, foam.
Possibility of added batch with two different feed media.

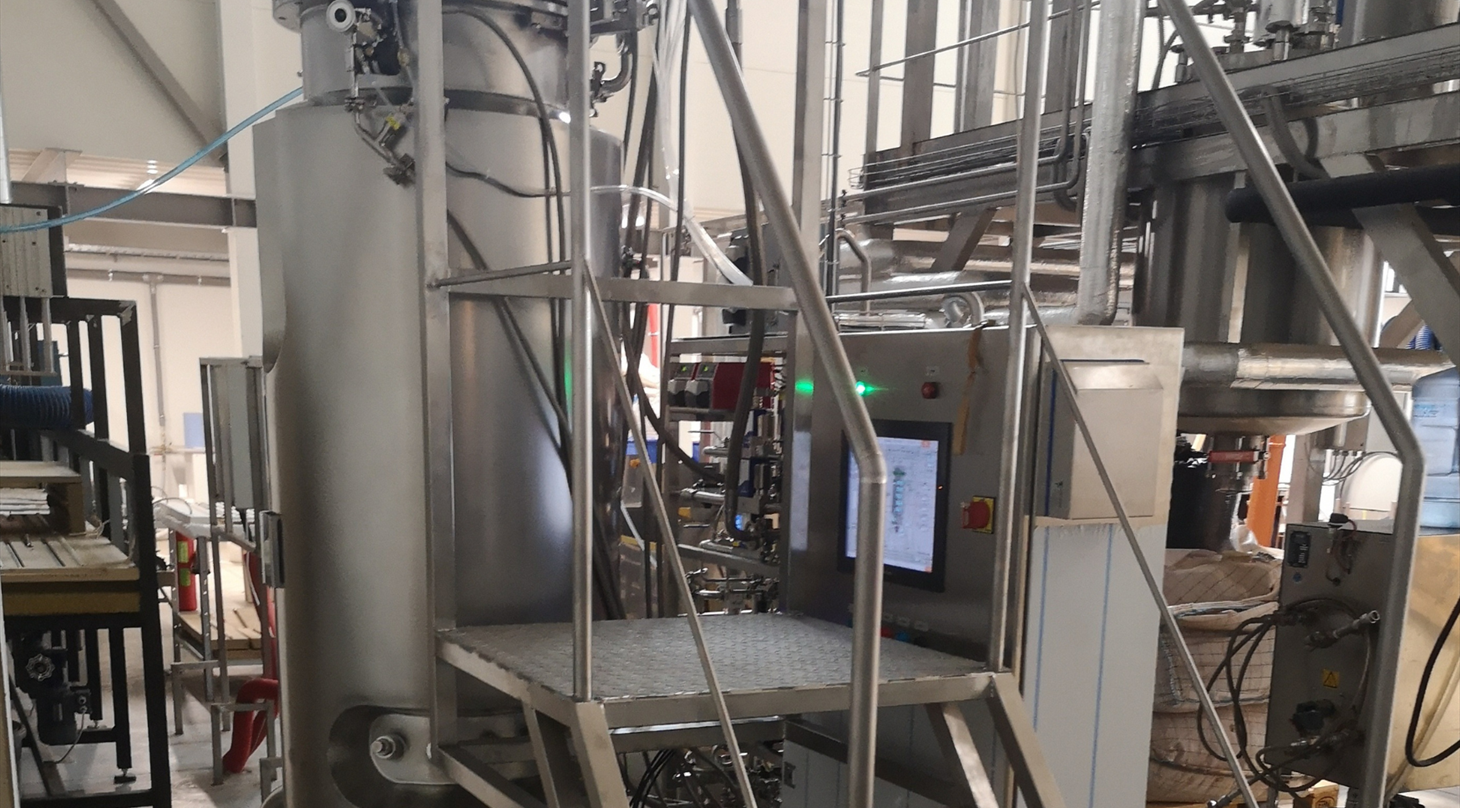

RF200.1- stainless steel fermentor (300 L Total volume):
40 – 225 L
MFC for Air flow rate (l/min)
9 – 450 L/min (2 VVM)
Co2 flow rate / o2 flow rate / n2 flowrate / H2 flowrate
0.3-1 (VVM) / 0.3-1 (VVM) / 0.3-1(VVM) / 0.3-1 (VVM)
Bottom mounted 3x Rushton
Mixer rotation speed (rpm)
Vessel Operating temperature (°C)
2 VVM, additional gas supply () 1 VVM
