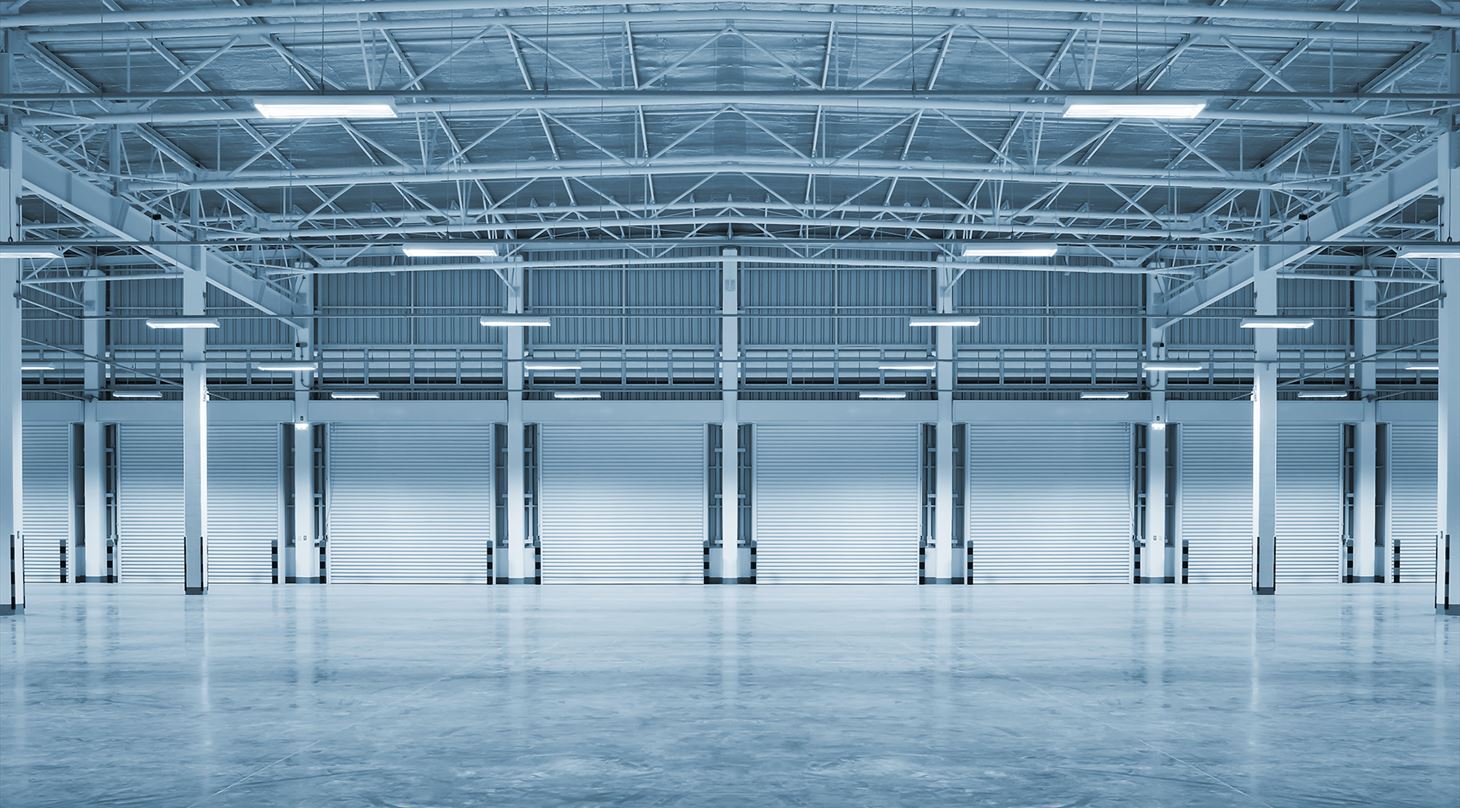

Fabrikshal med linoliumsgulv

ESD measurement of the antistatic properties of floors

Denmark   In Danish
Obtain documentation for the antistatic properties of your floor - and reduce the risk of sparks in ATEX areas, while simultaneously protecting sensitive equipment.

How can Danish Technological Institute help you?

Danish Technological Institute provides independent ESD measurement and consultancy on the antistatic properties of floorings:

  • Measurement of the floor surface resistance according to EN 61340-4-1
  • Documentation in the form of a detailed measurement report
  • Advisory services regarding requirements for the antistatic properties of floorings in Guideline C.0.9 from the Danish Working Environment Authority (Arbejdstilsynet)
  • Assessment against the Danish Working Environment Authority's guidelines on antistatic floors
  • Assessment of relevance for areas with a risk of explosive atmospheres

Why is ESD measurement important?

Static electricity is generated in many ways; for instance, a person accumulates an electrostatic charge simply by walking across a non-conductive floor. If the flooring does not dissipate this charge, an electrostatic discharge can:

  • Ignite explosive gas or dust atmospheres in ATEX zones
  • Damage or destroy sensitive electronics and components
  • Create safety hazards that are not visible during day-to-day operations

An ESD measurement from the Danish Technological Institute provides you with an objective, factual basis for assessing whether the floor complies with applicable requirements.

What does the measurement include?

The measurement is performed in accordance with the standard EN 61340-4-1, which specifies the test method for the electrostatic behaviour of floor coverings and installed floors.

Following the measurement, the Danish Technological Institute prepares a test report containing all relevant findings. The report can be used to:

  • Document the electrical conductivity of the floor
  • Support your ATEX documentation and risk assessment

The flooring must match the remaining antistatic equipment. Standards EN 345-1 (safety footwear) and EN 1149-1 (protective clothing) set out requirements for antistatic properties – but without the correct flooring, these protective measures lose their effectiveness.

ATEX testing of materials

In addition to ESD measurements of floors, the Danish Technological Institute conducts a range of tests related to the ATEX Directives 2014/34/EU and 1999/92/EC. These include antistatic testing of plastic materials, UV testing, climatic testing (including IP ratings), and dust sample analysis for explosion parameters such as Kst​, Pmax​, LEL, and MIE.

Contact us to determine which ATEX tests are relevant to your materials and production setup.

Contact us regarding ESD measurement

Do you need documentation verifying the antistatic properties of your flooring? Contact Danish Technological Institute for an independent ESD measurement and advisory consultation.

Frequently asked questions about ESD measurement

What is ESD measurement of floorings?
ESD measurement is a test of a floor surface's ability to dissipate static electricity. Danish Technological Institute conducts the measurement according to the standard EN 61340-4-1, and the results are documented in a comprehensive test report.

When is ESD measurement necessary?
ESD measurement is relevant in environments with sensitive electronics, in ATEX-classified zones, and in areas where Guideline C.0.9 from the Danish Working Environment Authority stipulates requirements for antistatic floorings.

Can surface treatments on concrete floors affect antistatic properties?
Yes. Surface sealers, coatings, and other treatments can reduce the natural conductivity of the concrete, thereby increasing the risk of electrostatic charge accumulation.

What does an ESD test report from the Danish Technological Institute contain?
The report contains test results measured in accordance with EN 61340-4-1 and can be used to verify regulatory compliance and evaluate the need for corrective modifications.

What is the connection between ESD and ATEX?
Electrostatic discharges can act as an ignition source in explosive gas atmospheres. In ATEX-classified areas, it is therefore critical that the flooring provides sufficient conductivity to prevent charge accumulation.

Which ATEX tests does Danish Technological Institute offer in addition to ESD measurement?
Danish Technological Institute conducts antistatic testing of plastic materials, dust analyses (Kst, Pmax​, LEL, LOC), UV testing, climatic testing, and IP code verification in relation to ATEX Directive 2014/34/EU.
