Copper Inks - Processing guidelines

Select Page
01. We deliver it for your production02. Technical data sheets03. Processing guidelines04. Request prices and product samples05. Licensing our technology

Below are the recommended processing steps for optimal results with the Danish Technological Institute's copper ink material.





CopperTopic 1 – Handling and thinning

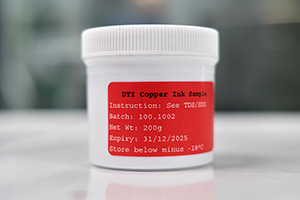

The copper ink container should be stored tightly sealed (-18 °C). Let it slowly heat up (ca. 30 min) and stir before use. Lifetime > 6 months. For thinning, mix with propylene glycol (can impact subsequent steps).








Print af elektronikTopic 2 - Printing

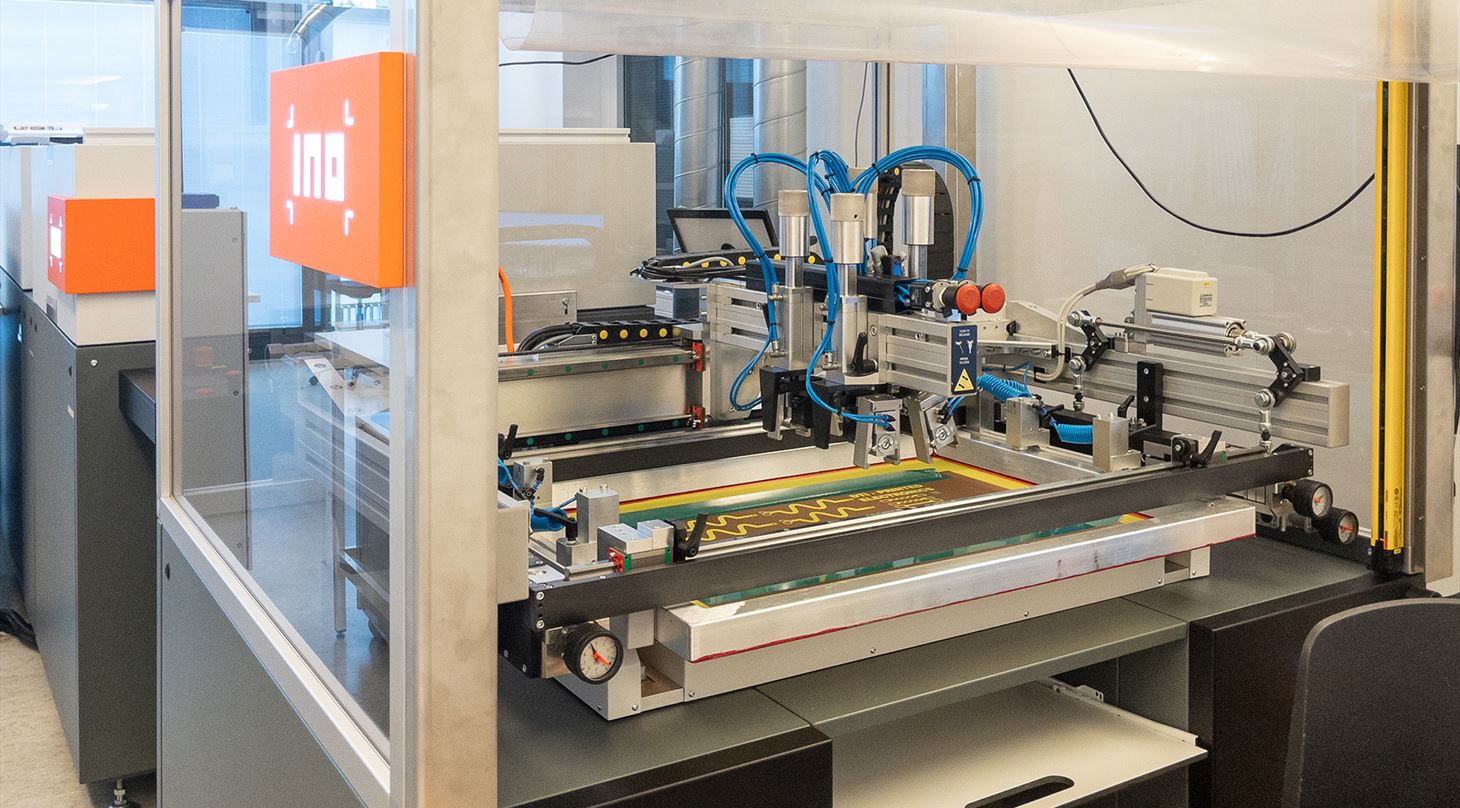

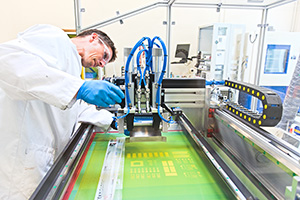

Screen printing (Mesh 100-120). Around 6-10 µm thick layer (120T mesh) is deposited per print.  Slot die coating and doctor blading are also possible.









Printet elektronikTopic 3 - Drying

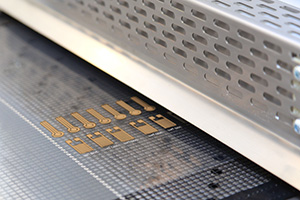

80 °C for 180 s right after printing using convection oven.











maskineTopic 4 - Heat press curing

Heat pressing (180 °C for 120 s) with non-stick layer between print and press (e.g. baking paper). Ca. 1 bar on an area of 25 cm x 50 cm. Within 1 day after drying.









Printet elektronik i kobberTopic 5 - Quality control

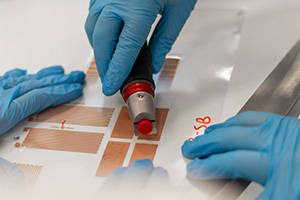

Validate anticipated resistivity (ca. 10 mΩ/□/mil on coated PET) and adhesion: (ISO 2409, TQC Sheen Adhesion Test) on coated PET.
