Piping systems and components in water installations - Taps, showers, shower systems and hose sets
Select Page
Testing of taps, showers and shower systems
The primary purpose of the tests is to document that the taps and showers including their components (flexible hose and pullout spray) meet the requirements for dimensions, leak tightness, pressure resistance, hydraulic performance and acoustic characteristics.
As noise from for example taps can be detected in adjacent rooms, there are test requirements according to EN ISO 3822. For Germany the Ü mark applies and is issued by DIBt (Deutsches Institut für Bautechnik).
A new standard - EN 18021 (Ecodesign) - was recently adopted for labelling of taps, showers, and shower systems for water and energy consumption. The purpose of the standard is to define the test procedures for calculating energy and measuring functional performance.

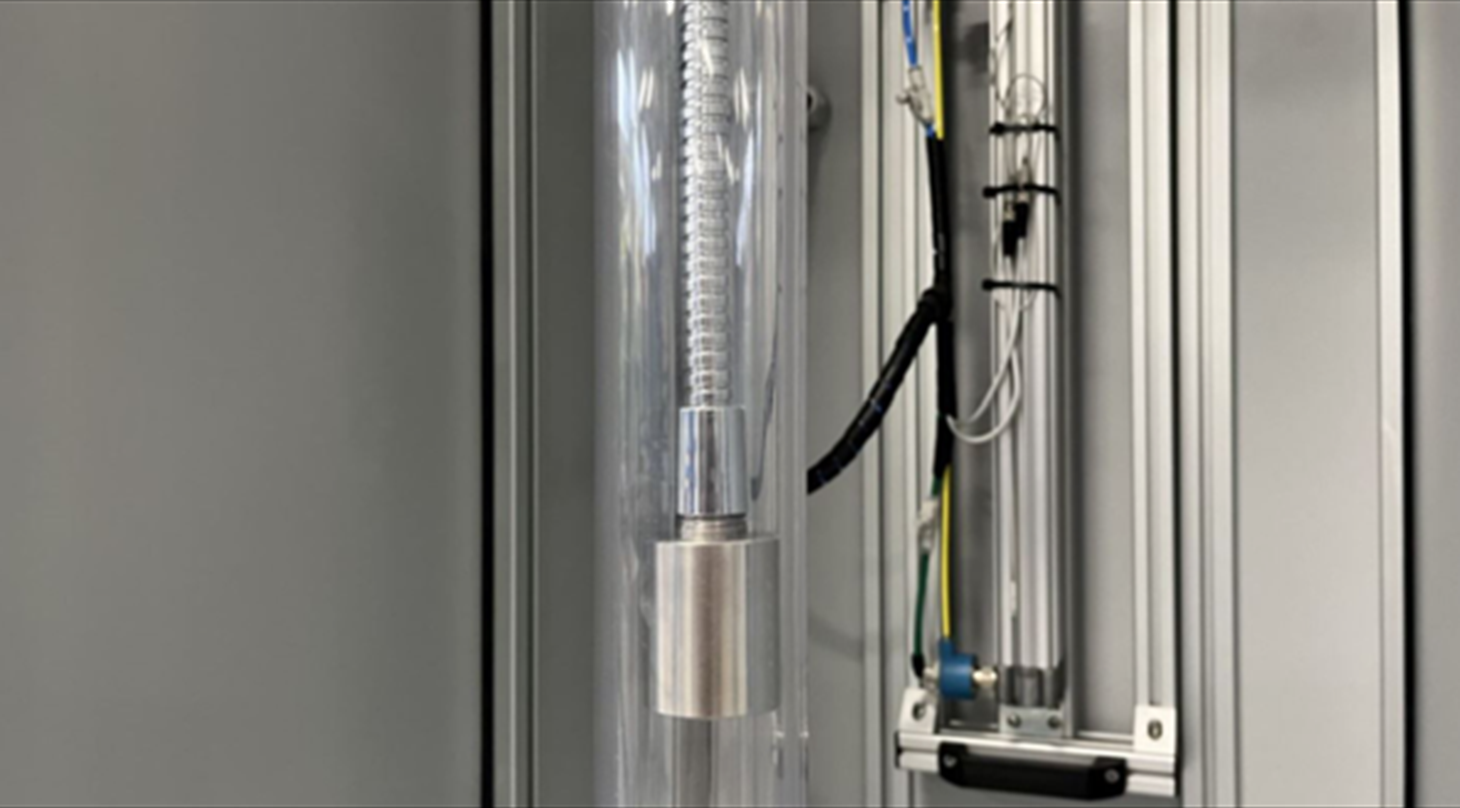

Testing of hose sets
The primary purpose of the tests is to document that the hose set meets the requirements for dimensions, flow rate and classification, corrosion, resistance to bending and tightening torque, tensile stress, leak tightness under internal hydraulic pressure, pressure cycling, pressure jump, temperature cycling, flexibility and UV resistance. For hose sets for household appliances a backflow prevention test is required.
Test methods for taps, showers and shower systems
EN 1111: Sanitary tapware – Thermostatic mixing valves (PN 10)
EN 1112: Sanitary tapware – Shower outlets for sanitary tapware for water supply systems of type 1 and type 2 – General technical specification.
EN 15091: Sanitary tapware – Electronic opening and closing sanitary tapware.
EN 200: Sanitary tapware – Single taps and combination taps for water supply systems of type 1 and 2
EN 816: Sanitary tapware – Automatic shut-off valves (PN10)
EN 817: Sanitary tapware – Mechanical mixing valves (PN10)
EN ISO 3822: Acoustics – Laboratory tests on noise emission from appliances and equipment used in water supply installations.
Approval and certification schemes for taps, showers and shower systems
VA PG 200-02, VAPG 817-03, VAPG 1111-02, DVGW ZP 6500,
ZP 0650, RISE CR074, Finnish Decree 7/19
Test methods for hose sets
EN 13618: Flexible hose assemblies in drinking water installations- Functional requirements and test methods
EN 1113: Sanitary tapware – Shower hoses for sanitary tapware for water supply systems of type 1 and type 2
EN 16146: Sanitary tapware – Extractable shower hoses for sanitary tapware for water supply systems of type 1 and type 2
EN 61770: Electric appliances connected to the water mains – Avoidance of backsiphonage and failure of hose sets
DVGW W543: Pressure-resistant flexible hoses for drinking water installations; requirements and testing.
Approval and certification schemes for hose sets
DVGW ZP 6517, RISE CR074, Finnish Decree 2/18
